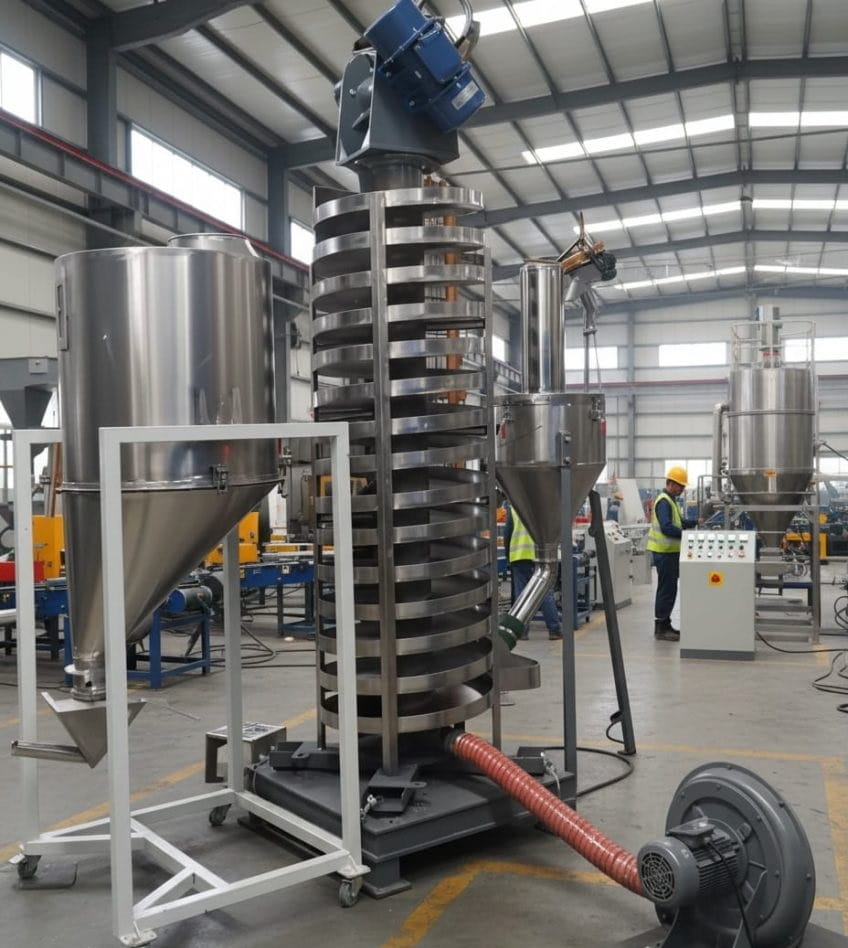

Vibratory Spiral Elevators
Vibrating spiral elevators transport bulk materials vertically in confined spaces.
It gently conveys bulk solids, granules, powders, or fine materials at controlled feed rates.
SABITEK vibratory spiral elevators are proven solutions for transporting bulk materials vertically up to 10 meters in height and at speeds up to 28 tons per hour. Thanks to the applied vibration technology, vibratory spiral elevators ensure gentle transport of the product. Products are moved upwards using a ‘micro-throw’ motion.
On duty in a wide variety of industries.
These spiral elevators transport materials stably in a wide variety of industries and materials, including plastic pellets, fiber materials, recycled products, glass frits, explosive powders, pharmaceuticals, food and beverages, especially in confined spaces.
Each SABITEK vibratory spiral elevator is designed specifically for your application.
Top or Bottom Motor Mounting
Customized to the available space and process requirements, the motors can be mounted either above or below the elevator.
Top-mounted motors allow for a lower entry height required by the equipment feeding the elevator.
Bottom-mounted motors make maintenance and adjustment easier.
Heat Treatment During Transportation
Bulk material can be cooled or dried during the conveying process to improve the final product quality. SABİTEK spiral elevators can be designed with systems that allow for direct cooling or heating of materials.
Static Caps for Dust Control
Dusty materials can be contained inside the elevator with integrated static covers.
Specially designed static covers can be equipped with visual inspection windows that allow operators to monitor product flow during operation. Additionally, ventilation ports can be added to the design to allow the customer to connect their own dust collection systems.
Minimal component design keeps the structure simple for superior load-bearing performance and reliability.
_________________
Minimal Component Design = Longer Service Life
SABİTEK has developed a simple design for vibrating spiral elevators that uses fewer moving parts.
Thanks to the combination of simple design and high-quality manufacturing, SABİTEK spiral elevators remain operational for longer periods even in the most demanding industrial environments, ensuring a long and reliable service life.
Variable Frequency Drives (VFD) for Process Flexibility
SABITEK spiral elevators are typically equipped with an optional variable frequency drive (VFD). This allows the operator to optimize the holding time of the conveyed material in order to control the feed rate.
