Grizzly Screeners

Vibrating grizzly screens separate coarse-sized material from the particle pile. The grizzly fingers allow material of the appropriate size to pass through while directing coarse-sized material to the next processing stage. They can be mounted under truck unloading stations and bunkers, or at the exit of belt conveyors with vibrating feeders.
SABİTEK grizzly sieves are a heavy-duty solution for the efficient screening of materials of varying sizes. Separating large particles from smaller particles allows for the efficient processing of these larger materials in subsequent stages.
SABİTEK vibrating grizzly screens are designed for continuous operation and durability. Grizzly screens can separate high volumes of material, making them suitable for high-capacity, large-scale processes. Each grizzly screen is driven by two heavy-duty electromechanical unbalanced motors (vibromotors) or by gearboxes with optional exciter drives, short-circuited to a single AC motor. SABİTEK grizzly screens are versatile and can be configured to meet a wide range of applications.

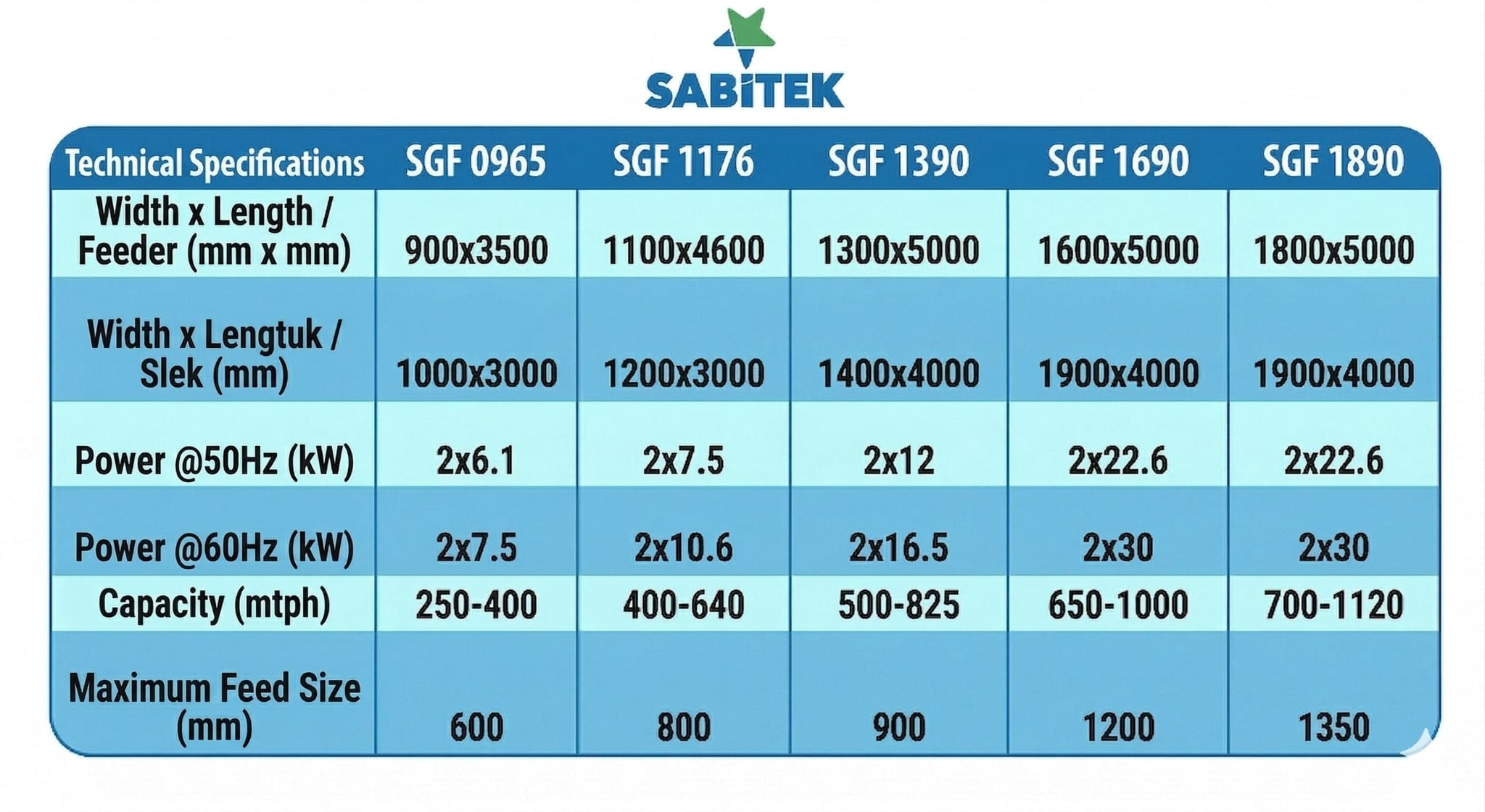

This table is for the specified slope and material weighing 1.6 t/m³ or 100 lbs/ft³. Capacity values are for illustrative purposes only and depend not only on the feeder size but also on the feeder slope, feed rate, etc.
