Classifying Screeners

Vibrating sieves (angle sieves, horizontal sieves, high-frequency sieves, etc.) precisely separate particles according to their size for reliable product quality.

Vibratory sorting sieves separate particles to desired cut-off sizes using probability and stratification principles. Also called linear sorting sieves, these vibratory sieves are designed for applications requiring specially sized material for processing by the next piece of equipment in the industrial process.

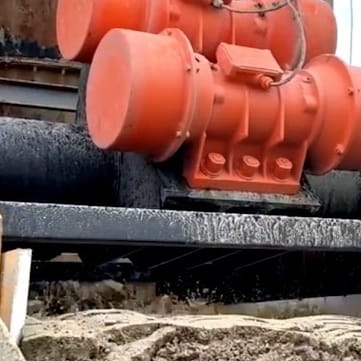

They provide precise and consistent particle size separation; suitable for continuous operation and high-capacity production speeds. Vibratory sorting sieves are scalable to accommodate varying production volumes and can be manufactured from a wide variety of materials, sieve solids arrangements, discharge configurations, and mounting types. Drive options include electromechanical motors, electromagnetic drives, and exciter drives.

Quality production.

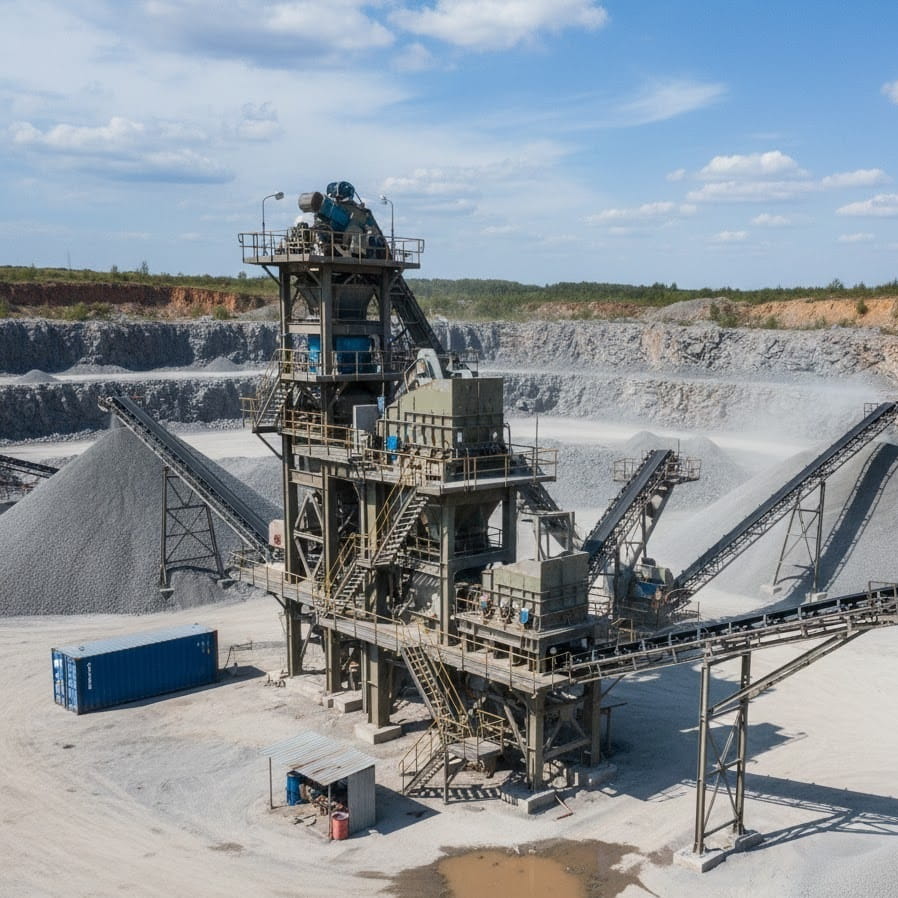

SABİTEK vibrating sorting screens are designed for use in numerous industries, including mining and aggregates, steel, recycling, plastics, chemicals, food, and beverages. We offer a wide range of drive and motor types to meet all needs, from light-duty applications like food and pharmaceuticals to heavy-duty applications.

REQUEST QUOTE

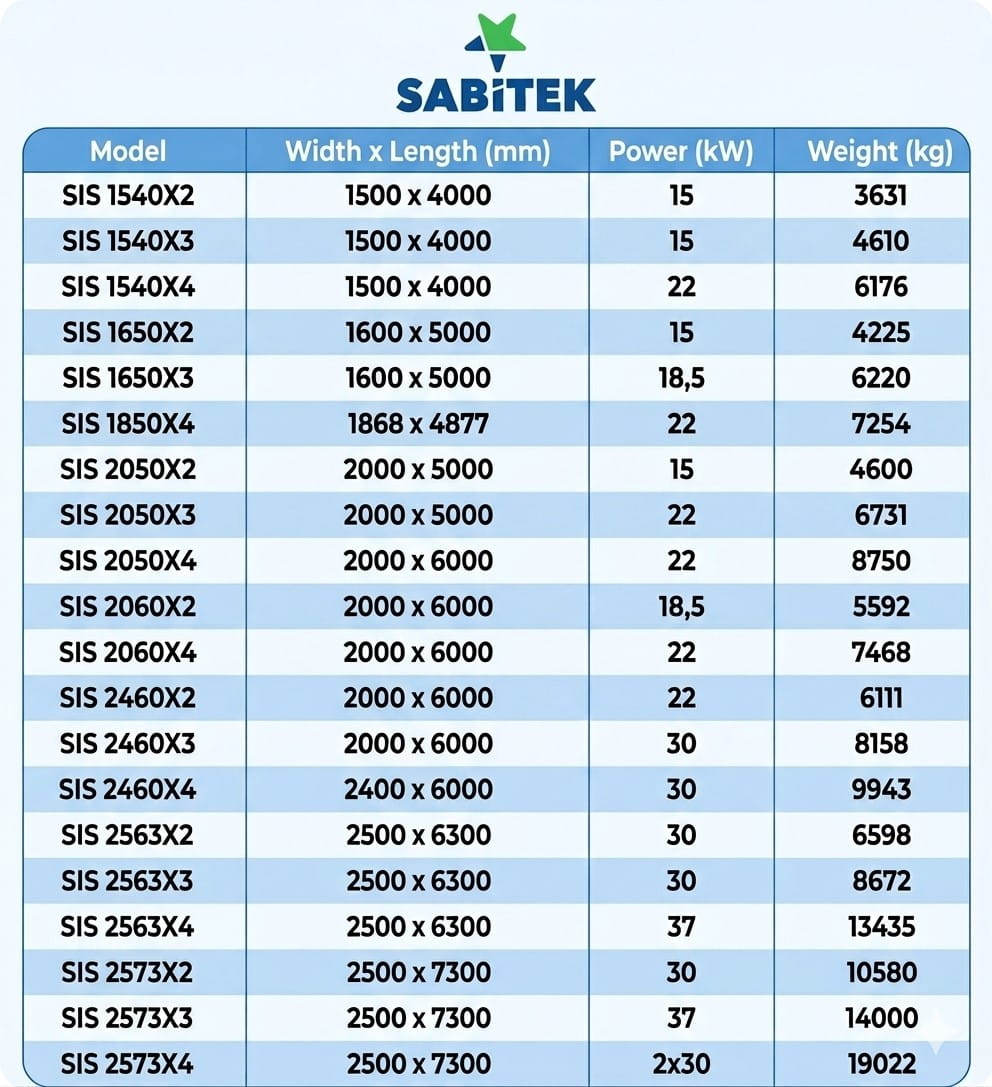

  • Material Density: Data is calculated based on material weighing 1.6 t/m³ (or 100 lbs/ft³).
  • Capacity Variables: The stated values ​​are indicative; they may vary depending on feed moisture, material fragility, and rotational speed.
  • Weight Included: The weights in the table do not include the drive motor package, support legs, maintenance platform, and inlet/outlet chutes.

Precise and consistent particle separation. Customized for each application.

Maximum Screening Efficiency: Each vibrating sieve is designed to maximize the probability of particles of the correct size passing through the sieve surface, thus ensuring the most ideal particle size separation.

Each screen is designed and manufactured to suit the working area, process requirements, and the type of bulk material to be screened.

We work collaboratively with our clients to design a customized screening solution.

Each application presents its own challenges, including the type and quantity of material, the desired cutting dimensions, and environmental conditions. The SABİTEK engineering team works with each of our clients to develop a sieve solution tailored to their specific processes and environmental requirements.

Multi-Dect Design

SABİTEK offers multi-deck designs with single, double, triple, and quadruple deck options to meet customer-focused process requirements. This feature allows for the separation of the material into two, three, four, or five different material flow lines depending on the particle size and requirements of the material.

SABİTEK offers a wide range of customization options, including side discharges, hatches, viewing windows, and building materials.

Wide Variety of Deck Construction

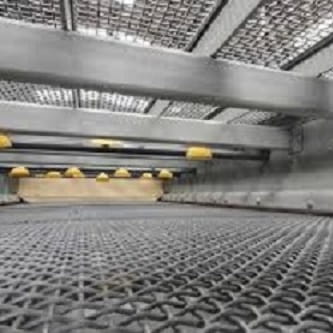

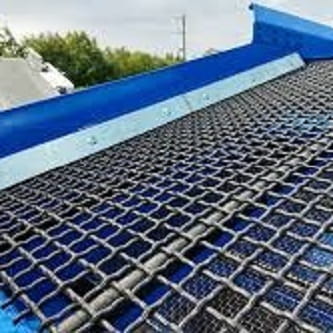

Woven wire decks are used in many applications featuring larger open areas.

Wedge wire decks are typically used for dewatering applications.

Perforated decks are used for longer wear life when screening abrasive materials.

Rubber decks are often used for highly-abrasive and/or high-temperature material.

Polyurethane decks can extend the wear life by 4x to 5x when used with abrasive material.

Food Grade and Washdown Ready

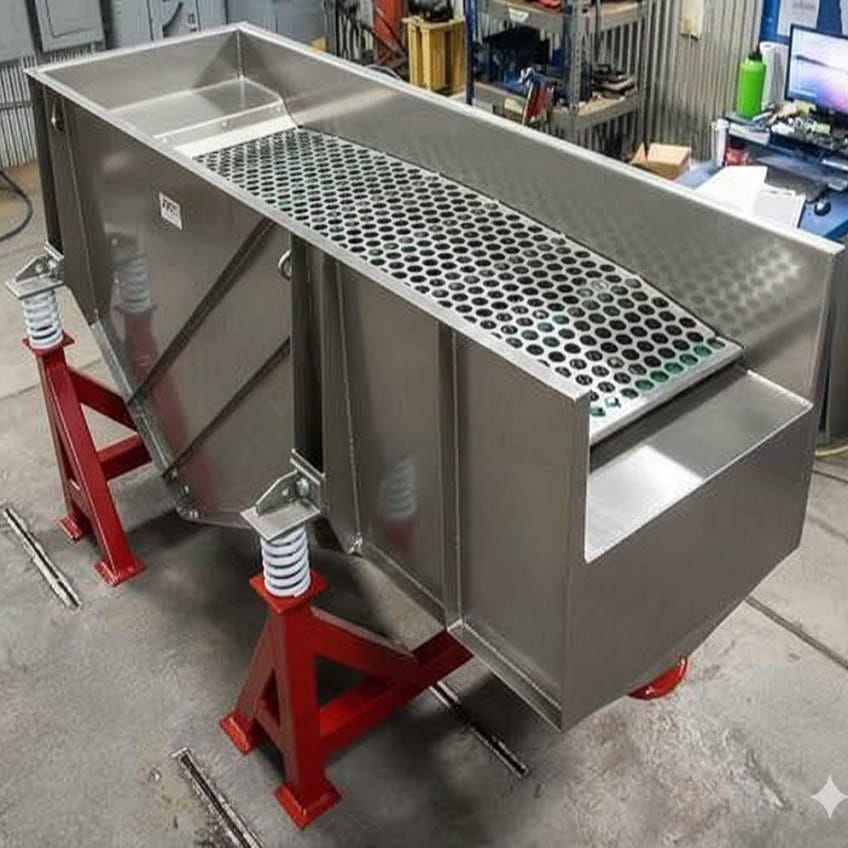

SABITEK sorting sieves, with their stainless steel construction finished according to specified mechanical or electro-polishing requirements, are suitable for food-grade and pharmaceutical industry applications.

Hazardous Location Certified

In areas where there is a risk of dust ignition, SABİTEK sorting sieves can be supplied with explosion-proof motors that have CSA and ATEX certifications.

Robust Construction for Tough Environments

For demanding working environments, SABİTEK Sorting Sieves are designed with more robust, thicker structural materials and wear-resistant linings in areas exposed to abrasion.
